400 LXF

400 LXF
Carbon Epoxy Construction
400 LXF

Starting at $1,034,502*
*Price includes standard boat & standard engines.
Current pricing is based on 2023 model year, please see your
local dealer for availability and additional pricing details.

Manufactured w/ Cutting Edge
Carbon Epoxy Construction

The 400 LXF is a brand new model, and it’s an innovation masterpiece. Designed and built with precision, this is where technology, performance and luxurious styling perfectly blend. While it’s loaded with standard features (like the standard SeaKeeper Gyro Stabilizer), the award-winning available options will floor you. Options like the patented electronically-actuated articulating rocket launchers and the convertible leaning post that includes a Kenyon grill, sink and cutting board further distance this model from anything else in its class. The standard hydraulic port side beach platform with synthetic teak further adds to the model’s characteristics, making it not just an incredible boat. It’s an incredible experience.

S-Class (luxury models 33’ and up) signifies the upper echelon of our line-up - the highest level of luxury - similar to what you experience with high-end luxury automobiles. The 400 LXF is meticulously crafted with cutting-edge Carbon Epoxy Construction (Carbon Fiber/E-Glass is the main material used in the Epoxy Infusion process) and the highest-performing dual Scout Stepped Hull Technology, while simultaneously pairing it with the finest sophisticated blend of appointments and technologies. Our S-Class denotes the most superior model for our customers.

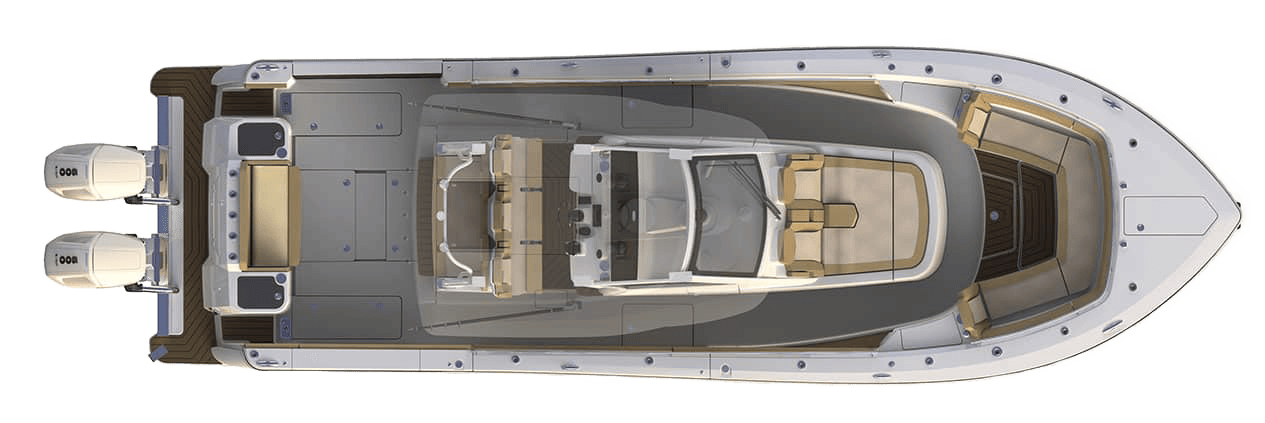

400 LXF Overhead Rendering

39' 7"

Length

(12.0 m)

12' 1"

Beam

(3.7 m)

430 gal

Fuel Capacity

(1,628 L)

18 gal

Diesel Tank

(68 L)

1,600 HP

Max HP

(1,194 kw)

Specs Continued

Dry Weight w/o Engines (aprx)

Epoxy-Infused Hull w/ Carbon/E-Glass
14,940 lbs 6,777 kg

Dry Weight w/ Twin Mercury 600s (aprx)

17,460 lbs 7,920 kg

Draft (aprx)

27" 0.7 m

Fresh Water Tank

51 gal 193 L

Waste Tank

16 gal 61 L

Baitwell Capacity

66 gal (2x 33 gal) 250 L (2x 125 L)

Aft Fish Box Port/Stbd

92.5 gal 350 L

Cabin Standing Room Height

6' 4" 1.93 m

Head Standing Room Height

6' 3" 1.9 m

Berth Sleeping Length

6' 5" 1.95 m

Deadrise

22 degrees

NMMA Certified / Yacht Certified

Click heading above for details
Yes

S-Class Model

Click heading above for details
Yes

400 LXF Highlights

Most Competition Hulls (Not Scout)

Traditional

Chopper Gun Construction

  • 50-year Old Technology
  • Chopper Gun Construction
  • 10-20% Weight Variance
  • Poor/Inconsistent Profile
  • Approx. 90% of Boats Built Today Use Some Form of This Process
  • Approx. Cost to Build = $1.48/lb
  • Approx. Weight = 4.2 lbs/sq ft
  • Stiffness = 16.5K lb-sq in/in
  • Post Cured During Ownership

Scout Hulls

Epoxy Infusion Construction

BEST

Epoxy-Infused E-Glass
(Scout 33’-35’)

  • Advanced Technology
  • Epoxy Infused E-Glass
  • 2-3% Weight Variance
  • Great Profile
  • Approx. 3% of Boats Built Today Use This Process
  • Approx. Cost to Build = $5.20/lb
  • Approx. Weight = 2.4 lbs/sq ft
    (Approx. 34% Lighter than Traditional)
  • Stiffness is approx. 4X Stiffer than Traditional
  • Post Cured in the Mold w/ Thermo Couplers

Scout Hulls

Carbon Epoxy Construction

Revolutionary

Epoxy-infused Carbon Hybrid
(Scout 37’-53’)

  • State-of-the-Art Technology
  • Epoxy-Infused Carbon Fiber/E-Glass
  • 1-2% Weight Variance
  • Class “A” Profile
  • Less than 1% of Boats Built Today Use This Process
  • Approx. Cost to Build = $8.70/lb
  • Approx. Weight = 1.7 lbs/sq ft
    (Approx. 58% Lighter than Traditional)
  • Stiffness is approx. 5X Stiffer than Traditional
  • Post Cured in the Mold w/ Thermo Couplers
  • Widely Used in the Aerospace Industry
380 LXF Expoxy-Infusion

Epoxy-Infused Hull

The Epoxy-Infused hull using Carbon Fiber/E-Glass provides improved superior structural stability, strength and a Class-A finish, creating unsurpassed performance.

Articulating Rocket Launchers
w/ SureShade

With the touch of a button, you can electronically raise or lower the hardtop mounted rocket launchers. When the Sure Shade retractable awning is deployed, the rocket launchers will also lower electronically. Having the rocket launchers articulate not only provides an added unique feature to the boat, but also helps with ease of loading/unloading rods.
(optional equipment)

400 LXF Articulating Rocket Launchers
400 LXF Mezzanine Seat

Electronically-Actuated Convertible Hideaway Entertainment Station / Mezzanine Seat Patent-Pending

Patent-pending. Push a button and the aft-facing mezzanine seat & foot rest fold up to reveal an entertainment/bait prep station complete with hidden sink, cutting board, grill, tackle drawer and storage. Incredible space-saving, unique design that completely transforms the utility of your boat in mere seconds.
(optional equipment)

Digital Helm

Control on-board systems with the touch of a screen. Your Garmin screens encased in glass bezels provide the technological touch you’ve come to expert, as well as the seamless, modern styling they represent.

400 LXF Digital Helm
Seakeeper Gyro

Seakeeper Gyro Stabilizer System

Fully integrated into the 400 LXF, your standard Seakeeper 3 DC Gyro Stabilizer will provide you incredible comfort out on the water. Spin it up, and enjoy stability in the open seas as if you were on solid ground.
(optional upgrade to Seakeeper 6)

Helm Heated Seats

Additional comfort provided with our standard heated helm seats feature.

400 LXF Heated Helm Seats
530 LXF Scout Line Drawing

Build Your Scout

Click below to build your dream Scout model.
